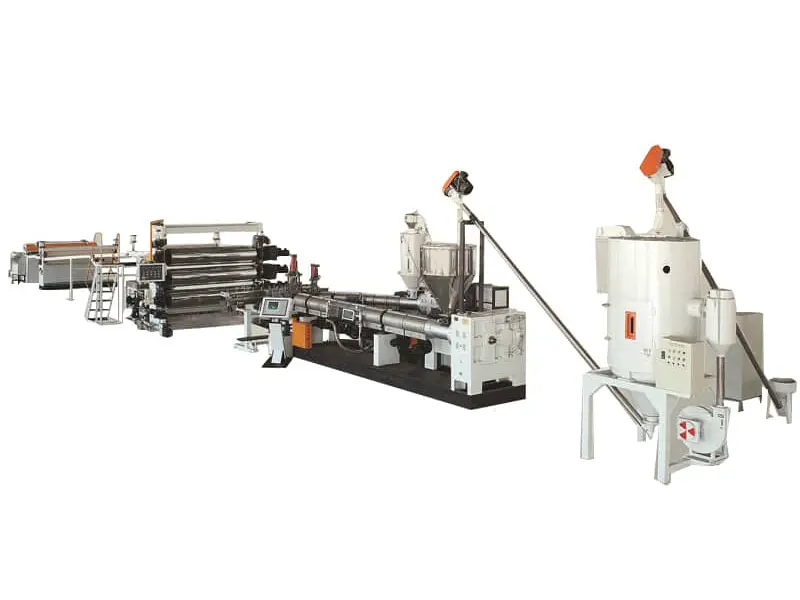

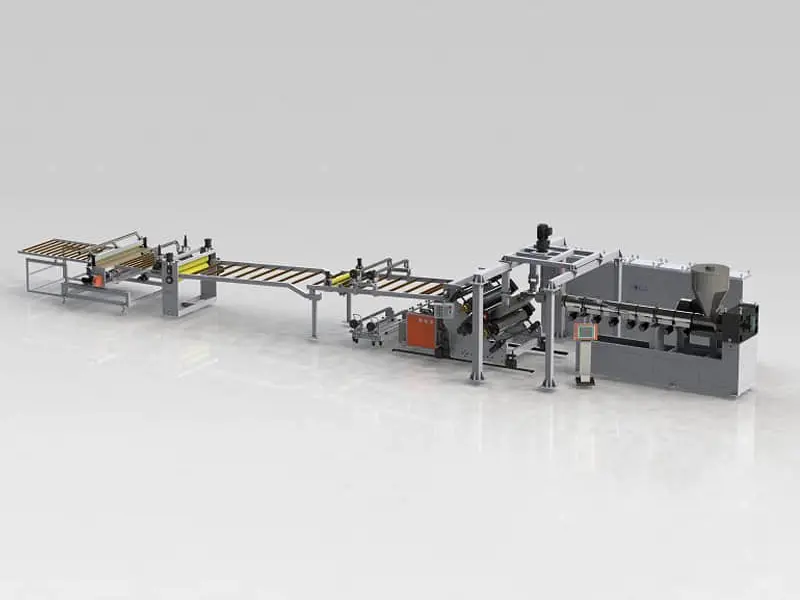

The ABS, HIPS, and GPPS Sheet Extrusion Line represents a cutting-edge solution in the plastics processing industry, designed to cater to the diverse needs of manufacturers seeking high-quality, consistent, and efficient production of thermoplastic sheets. This state-of-the-art extrusion line leverages advanced technology to ensure precision in every stage of the process, from raw material feeding to final sheet output.
Equipped with robust and reliable extruders, the line is capable of handling a wide range of formulations of ABS (Acrylonitrile Butadiene Styrene), HIPS (High-Impact Polystyrene), and GPPS (General-Purpose Polystyrene) materials. The precision temperature control system maintains optimal processing temperatures throughout the extrusion process, ensuring optimal melt flow and minimizing material degradation.
Engineered to deliver uniform sheet thickness and width, meeting even the most stringent quality standards. Coupled with an advanced calibration and cooling system, it guarantees excellent surface finish and dimensional stability.
Features automated handling and cutting mechanisms including automatic winders and trimmers to ensure the sheets are neatly packaged, enhancing productivity and reducing labor costs.
Moreover, the entire system is designed with energy efficiency in mind, incorporating energy-saving components and practices that reduce operational costs and environmental impact. The user-friendly control panel, equipped with PLC and HMI (Human-Machine Interface), allows for seamless monitoring and adjustment of process parameters, ensuring flexibility and ease of operation.
In summary, this ABS, HIPS, and GPPS Sheet Extrusion Line stands as a testament to commitment to innovation and excellence, offering manufacturers a comprehensive solution for producing high-performance thermoplastic sheets with precision, efficiency, and sustainability.
| Extruder Specification | Single screw extruder GWS120/GWS65/GWS45 | Single screw extruder GWS150/GWS90 | Single screw extruder GWS180/GWS105 | Parallel twin screw extruder GWP75/Single screw extruder GWS90 |
|---|---|---|---|---|
| Suitable Material | PMMA; ABS; GPPS; HIPS | PMMA; ABS; GPPS; HIPS | PMMA; ABS; GPPS; HIPS | PMMA; ABS; GPPS; HIPS |
| Structure of Product | A/B/C/B/A; A/B/C; A | A/B/A; A/B; A | A/B/A; A/B; A | A/B/A; A/B; A |
| Thickness of Product | 2mm-8mm | 1mm-6mm | 2mm-8mm | 2mm-8mm |
| Width of Product | 2100mm | 1700mm | 2100mm | 2100mm |
| Output | 600kg/h | 650kg/h | 800kg/h | 800kg/h |

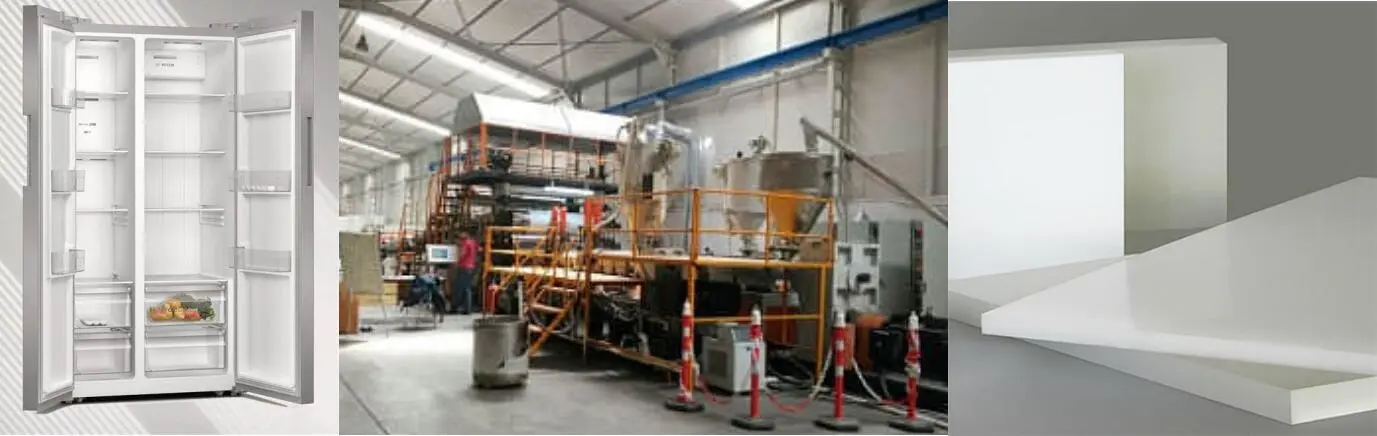

In recent years, these products have been used by customers worldwide and exported to the United States, Germany, Japan, Russia, Spain, Turkey, Iran, South Korea, Indonesia, India, South America, and other countries and regions.

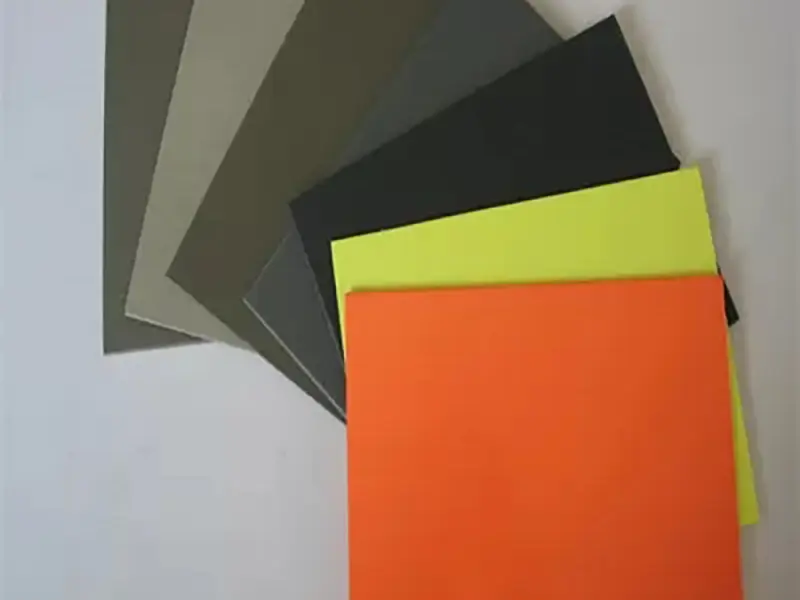

A: This sheet extrusion line is highly versatile and capable of processing formulations of ABS (Acrylonitrile Butadiene Styrene), HIPS (High-Impact Polystyrene), GPPS (General-Purpose Polystyrene), and PMMA materials.
A: Depending on the specific configuration and model of the extruder, the system can produce sheets with thicknesses ranging from 1mm up to 8mm.
A: The extrusion line can produce sheet widths of 1700mm or 2100mm, matching different production requirement specifications.
A: The line uses a high-precision engineered die design paired with an advanced calibration and cooling system to maintain constant thickness, width, and dimensional stability.
A: The output capacity varies by model, ranging from 600kg/h up to 800kg/h for high-efficiency production configurations.
A: The system features an integrated PLC and HMI (Human-Machine Interface) control panel, enabling operators to easily monitor and adjust processing parameters in real time.
