The heart of the production line, the extruder melts and homogenizes the PP resin, additives, and any reinforcing materials under controlled temperature and pressure conditions. The extruder is equipped with precision screws and barrels to ensure uniform mixing and consistent melt quality.

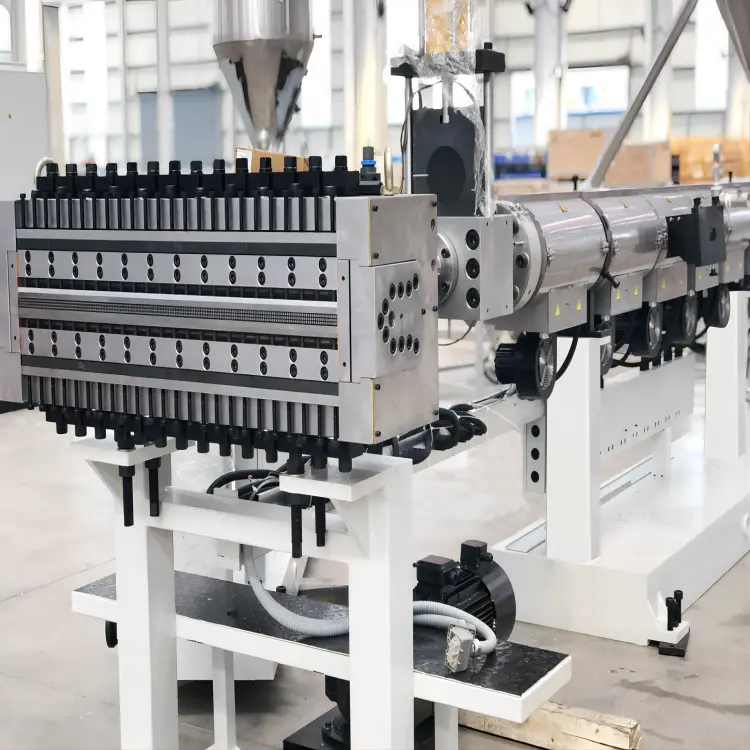

Custom-designed to shape the molten PP into the desired board profile, the die head is precision-engineered for accurate dimensional control and smooth surface finish.
Immediately after extrusion, the board passes through a calibration table and cooling system to maintain flatness and dimensional stability while solidifying the material.
This section gently pulls the extruded board at a controlled speed, ensuring tension is maintained to prevent distortion. Once the desired length is achieved, the board is automatically cut to size.

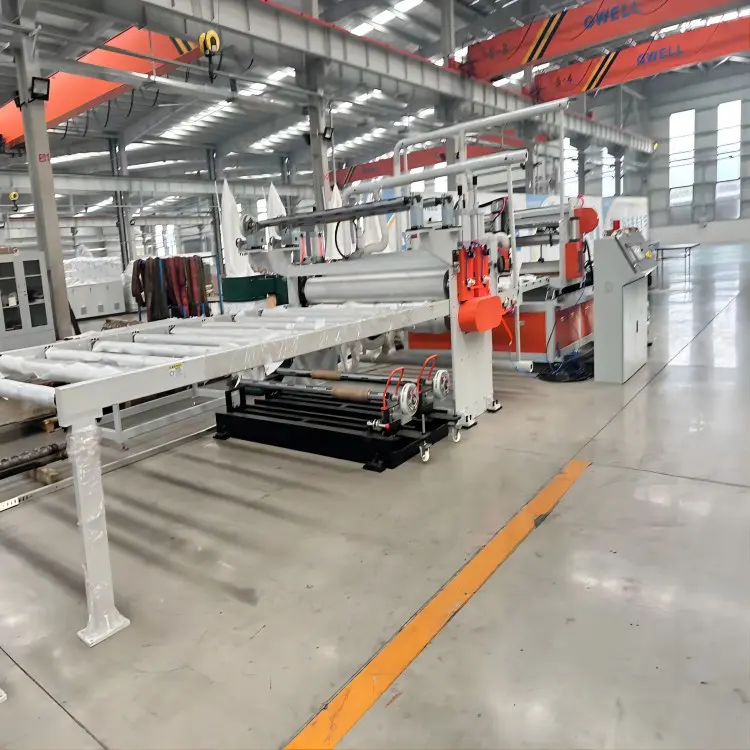

The finished boards are conveyed to a stacking area where they can be further processed, such as trimming edges or applying protective films, before being packaged and prepared for shipment.
With automated controls and optimized process parameters, the line maximizes throughput while maintaining product quality.

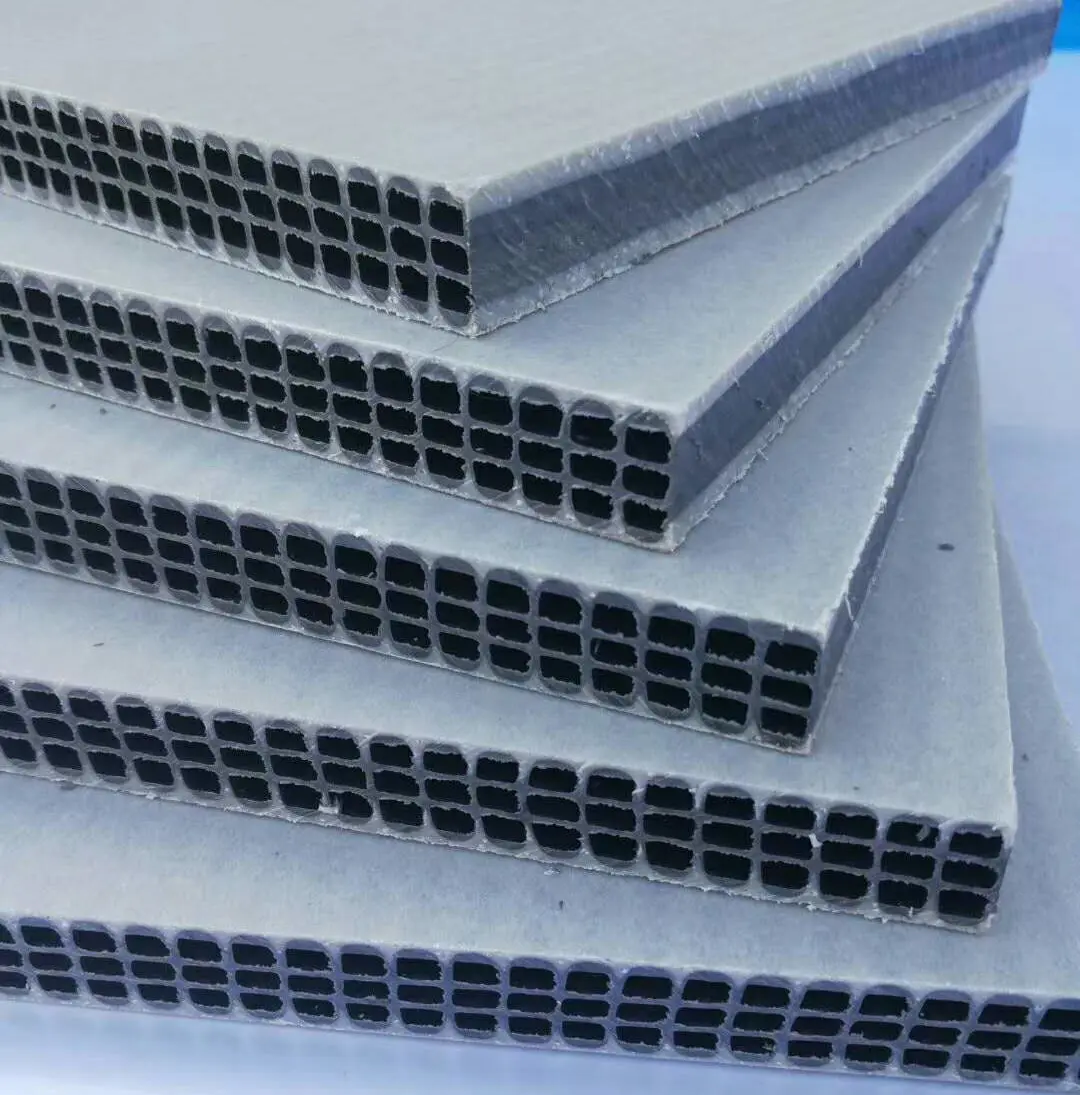

Capable of producing a variety of thicknesses, widths, and lengths, catering to diverse construction needs from walls and partitions to roofing and flooring applications.
Utilizes recyclable PP materials, reducing environmental impact and promoting sustainability.
Incorporates energy-saving designs and components, such as high-efficiency motors and heat recovery systems, to minimize operational costs.
Ensures consistent board quality with minimal waste, enhancing overall productivity and profitability.
Tailored solutions are offered to meet specific customer requirements, including custom die head designs for unique board profiles and optional enhancements like UV stabilizers, flame retardants, or enhanced insulation properties. Additionally, comprehensive after-sales support, including installation supervision, operator training, and maintenance services, ensures smooth and reliable operation over the production line's lifespan.
In conclusion, the PP Building Construction Board Extrusion Line represents a significant leap forward in the production of modern building materials. Its combination of advanced technology, high efficiency, and environmental responsibility makes it an ideal choice for manufacturers seeking to produce high-quality, sustainable PP construction boards for a wide range of applications.

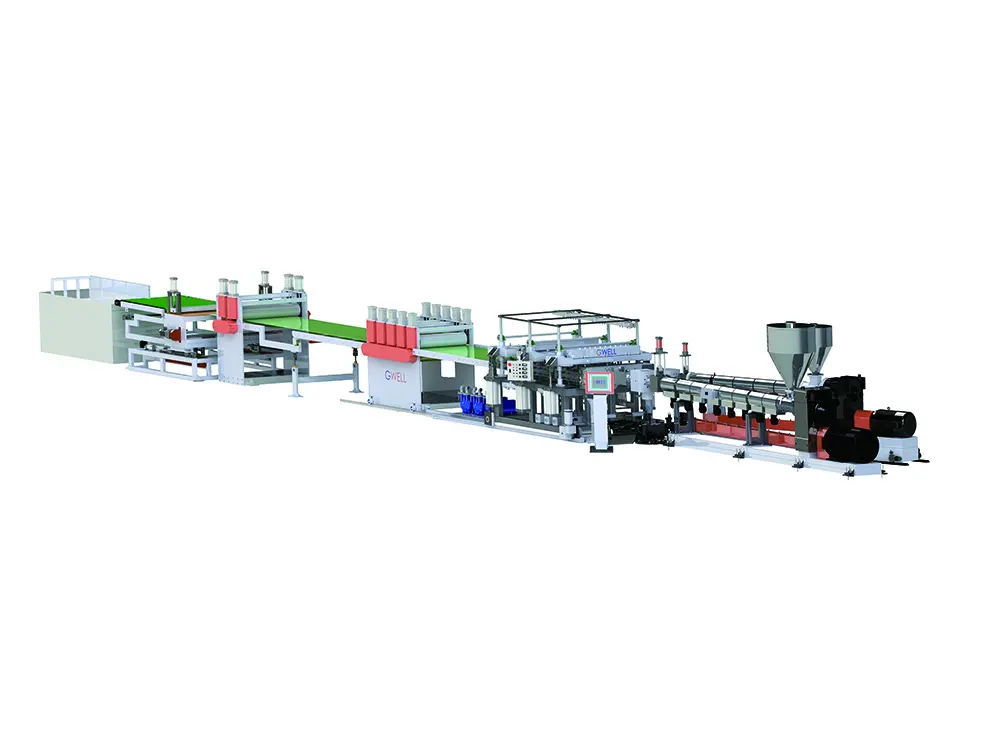

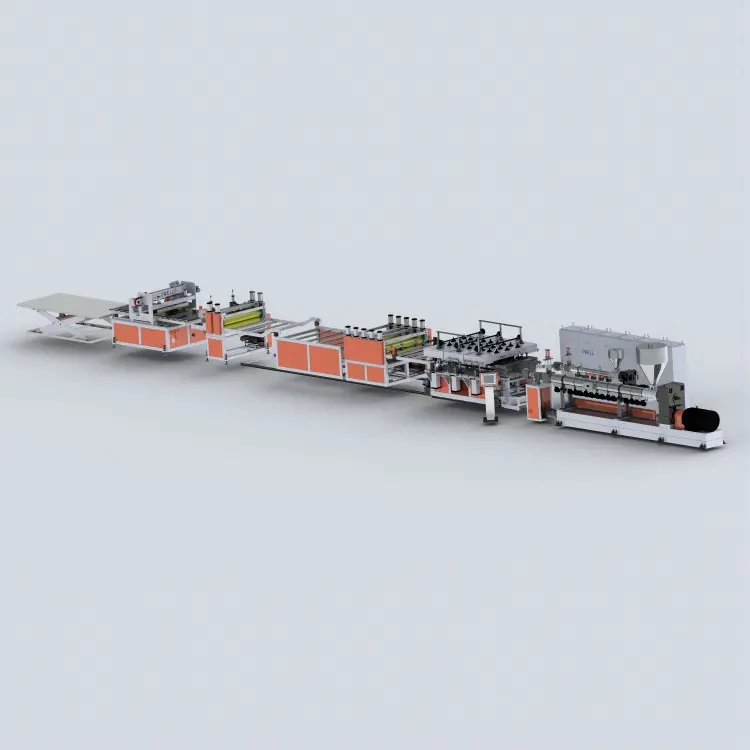

The extrusion line consists of five main units: the extruder (for melting and mixing), the die head (for shaping), the calibration and cooling station (for dimensional stability), the haul-off and cutting unit (for tension and sizing), and the stacking and packaging area.
Yes. The system is engineered with high flexibility, allowing manufacturers to produce construction boards in a wide range of thicknesses, widths, and lengths suitable for walls, partitions, roofing, and flooring.
The line is designed to process fully recyclable PP (polypropylene) materials, minimizing environmental waste and carbon footprint while promoting sustainable construction practices.
Yes. The system integrates advanced energy-saving designs, utilizing high-efficiency motors and heat recovery components to significantly reduce power consumption and lower operational expenses.
Manufacturers can customize board properties by incorporating optional enhancements such as UV stabilizers for outdoor longevity, flame retardants for safety, or additives for enhanced thermal and structural insulation.
Comprehensive technical support is provided, including installation supervision, machine operator training, and post-purchase maintenance planning to ensure consistent production and maximize equipment lifespan.
